Art. 202B

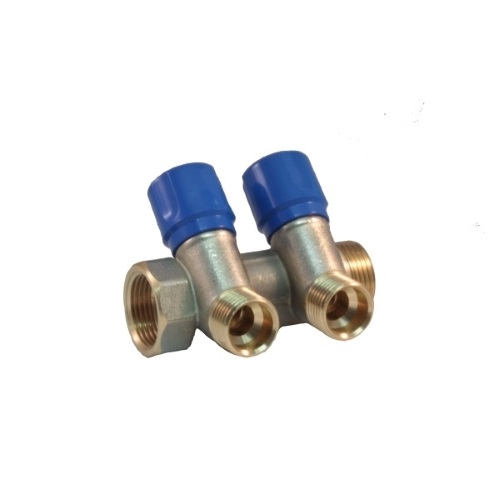

Manifold with 2 male outlets and oblique valves
Print datasheet
Items

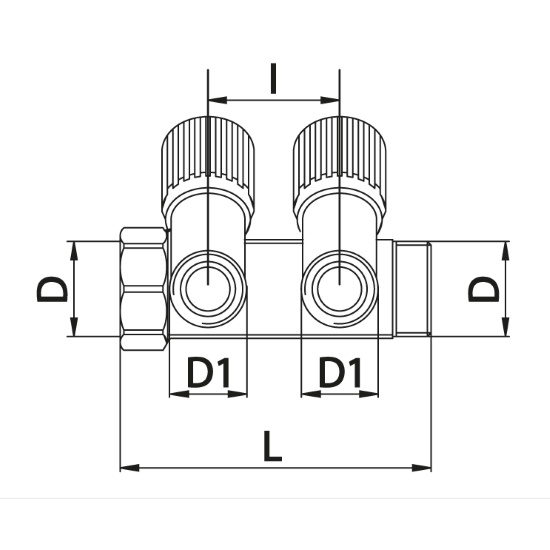

| Code | Size (D) | Smooth | Handle | D1 | I | L | Pack | ||||
| Conical seat - Inner diameter: 16mm | |||||||||||
| 202B05040A | 3/4" | Plastic | 1/2" | 36 | 84 | 5 | |||||
| 202B05040D | 3/4" | Plastic | 1/2" | 36 | 84 | 5 | |||||
| Conical seat - Inner diameter: 15mm | |||||||||||
| 202B05047A | 3/4" | Plastic | 1/2" | 36 | 84 | 5 | |||||
| 202B05047D | 3/4" | Plastic | 1/2" | 36 | 84 | 5 | |||||
| Flat seat - Inner diameter: 15mm | |||||||||||
| 202B05046A | 3/4" | Plastic | 1/2" | 36 | 84 | 5 | |||||
| 202B05046D | 3/4" | Plastic | 1/2" | 36 | 84 | 5 | |||||
Smooth
- Yellow
- Chrome
- Nickel
- White
Max working temperature: 110°C
Max working pressure: 10 bar
Bodyin forged brass
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer pipes
Suitable for sanitary and heating systems
