Art. 7656

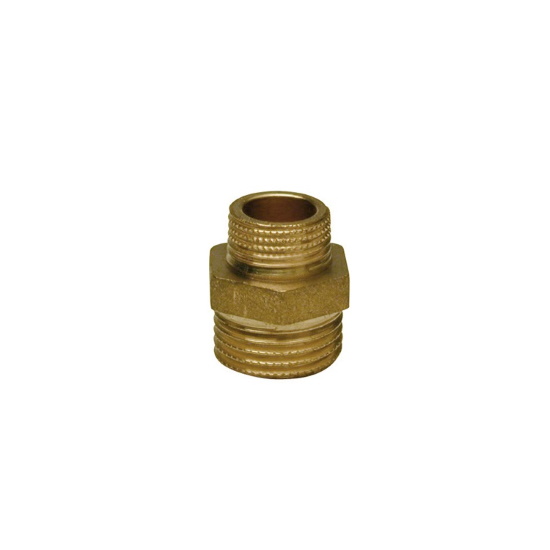

Nipplo ridotto MM
Stampa scheda
Articoli

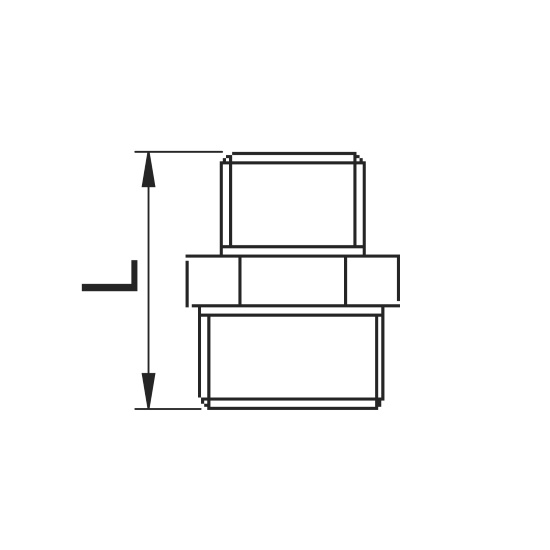

| Codice | Dimensione (D) | Finitura | D1 | L | Imballo |
| 0765603020 | 3/8" | 1/4" | 25 | 50 | |
| 076560302C | 3/8" | 1/4" | 25 | 50 | |
| 0765604020 | 1/2" | 1/4" | 25,5 | 25 | |
| 076560402C | 1/2" | 1/4" | 25,5 | 25 | |
| 0765604030 | 1/2" | 3/8" | 26,5 | 25 | |
| 076560403C | 1/2" | 3/8" | 26,5 | 25 | |
| 0765605030 | 3/4" | 3/8" | 28 | 25 | |
| 076560503C | 3/4" | 3/8" | 28 | 25 | |
| 0765605040 | 3/4" | 1/2" | 28,5 | 25 | |
| 076560504C | 3/4" | 1/2" | 28,5 | 25 | |
| 0765606040 | 1" | 1/2" | 30,5 | 25 | |
| 076560604C | 1" | 1/2" | 30,5 | 25 | |
| 0765606050 | 1" | 3/4" | 31 | 25 | |
| 076560605C | 1" | 3/4" | 31 | 25 | |
| 0765607050 | 1 1/4" | 3/4" | 34 | 20 | |
| 0765607060 | 1 1/4" | 1" | 34 | 15 | |
| 0765608060 | 1 1/2" | 1" | 38 | 10 | |
| 0765608070 | 1 1/2" | 1 1/4" | 40 | 10 | |
| 0765609070 | 2" | 1 1/4" | 43 | 5 | |
| 0765609080 | 2" | 1 1/2" | 43 | 5 |
Finitura
- Giallo
- Cromo
- Nichel
- Bianco
Temperatura d'esercizio: 0°C -100°C
Pressione massima d'esercizio : 10 bar
Filetti maschio: ISO 7/1
Filetti femmina: ISO 228
