Manifold with 5 male outlets
Art. 205
Manifold with 5 male outlets
Items

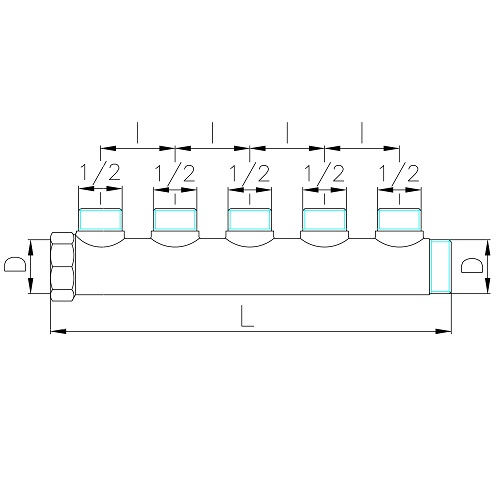

| Code | Size (D) | Smooth | Pack | D1 | I | L | |||||
| Conical seat - Inner diameter: 16mm | |||||||||||
| 2050050400 | 3/4" | 8 | 1/2" | 36.0 | 193.0 | ||||||
| 2050C50400 | 3/4" | 8 | 1/2" | 36.0 | 193.0 | ||||||
| 2050060400 | 1" | 6 | 1/2" | 36.0 | 193.0 | ||||||
| Conical seat - Inner diameter: 15mm | |||||||||||
| 2050050470 | 3/4" | 8 | 1/2" | 36.0 | 193.0 | ||||||
| Flat seat - Inner diameter: 15mm | |||||||||||
| 2050050460 | 3/4" | 8 | 1/2" | 36.0 | 193.0 | ||||||
Smooth
- Yellow
- Chrome
- Nickel
- White
Max working temperature: 110°C
Max working pressure: 10 bar
Body in forged brass CW617N
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer pipes
Suitable for sanitary and heating systems
