DZR press ball valve with press-fit ends "V" profile
Art. 537E
DZR Brass ball valve with press-fit ends "V" profile, iron lever handle
CW602N_DZR
Items

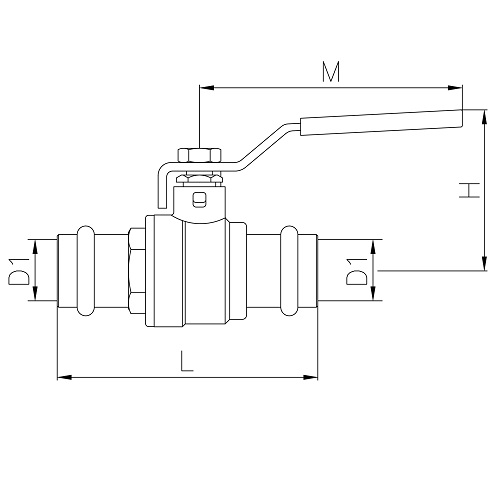

| Code | Size (D) | Smooth | Handle | Pack | I | L | h |
| 537E00030N | D.12 | Iron | 10 | 93.0 | 78.0 | 52.0 | |
| 537E00040N | D.15 | Iron | 10 | 93.0 | 78.0 | 52.0 | |
| 537E00048N | D.18 | Iron | 10 | 93.0 | 78.0 | 52.0 | |
| 537E00050N | D.22 | Iron | 8 | 93.0 | 92.0 | 56.0 | |
| 537E00060N | D.28 | Iron | 5 | 112.0 | 98.0 | 67.0 | |
| 537E00070N | D.35 | Iron | 4 | 112.0 | 109.0 | 70.0 | |
| 537E00080N | D.42 | Iron | 4 | 143.0 | 132.0 | 78.0 | |
| 537E00090N | D.54 | Iron | 2 | 143.0 | 163.0 | 86.0 |
Smooth
- Yellow
- Chrome
- Nickel
- White
Working temperature: 0-110°C
Max working pressure: 25 bar (art. 425BZ -438)
Max working pressure: 16 bar (art. 537E -560E)
Bod y in forged brass
Threads: ISO 228
