CW510L_LOW_LEAD
Art. 658

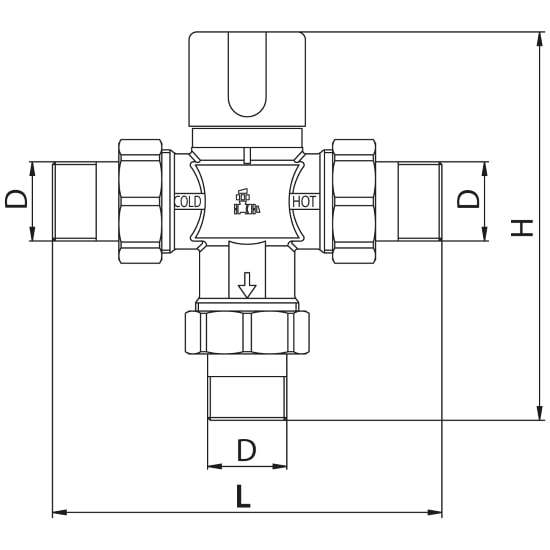

3 ways thermostatic mixing valve with male pipe union for solar system - high temperature
Print datasheet
Items
| Code | Version | Size (D) | Smooth | Handle | H | L | Pack |
| 6580000400 | 1/2" | Plastic | 142 | 160 | 1 | ||
| 658N000400 | Check valves | 1/2" | Plastic | 142 | 160 | 1 | |
| 6580000500 | 3/4" | Plastic | 135 | 147 | 1 | ||
| 658N000500 | Check valves | 3/4" | Plastic | 135 | 147 | 1 | |
| 6580000600 | 1" | Plastic | 146 | 169 | 1 | ||
| 658N000600 | Check valves | 1" | Plastic | 146 | 169 | 1 |
Smooth
- Yellow
- Chrome
- Nickel
- White
Minimum working pressure: 2 bar
Maximum working pressure: 10 bar
Minimum cold inlet temperature: 4°C
Maximum hot inlet temperature: 85°C (solar: 110°C)
Mixed outlet temperature: 35°C-55°C
Threads: ISO 228
Allowed fluids: water (Glycole max percentage: 50%)
Install at water heater to set the maximum temperature for entire system
Set the maximum temperature for radiant floor installations
Point of use: set the maximum temperature of each fixture individually or group
