Art. 412B

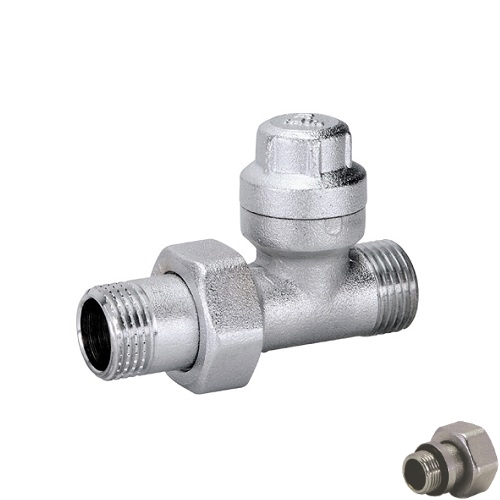

Straight lockshield-valve for copper, multilayer and Pex pipe

Print datasheet

Items

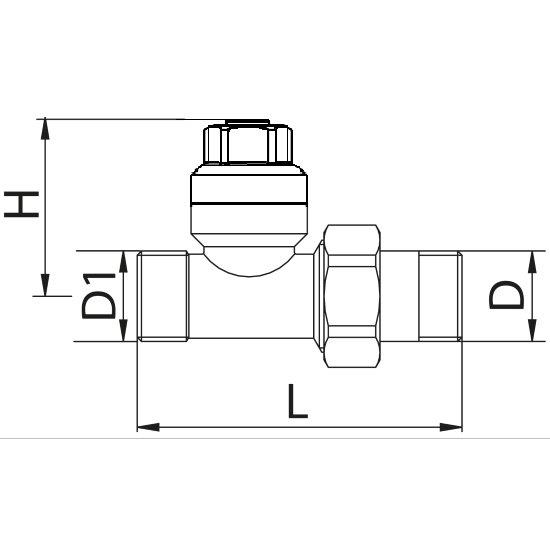

Code Version Size (D) Smooth D1 H L Pack
412BN00300 3/8" 1/2" 40 71 10
412BN0030G O-Ring 3/8" 1/2" 40 71 10
412BN00400 1/2" 1/2" 40 73 10
412BN0040G O-Ring 1/2" 1/2" 40 73 10
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)

🍪
