CW602N_DZR
Art. 537E

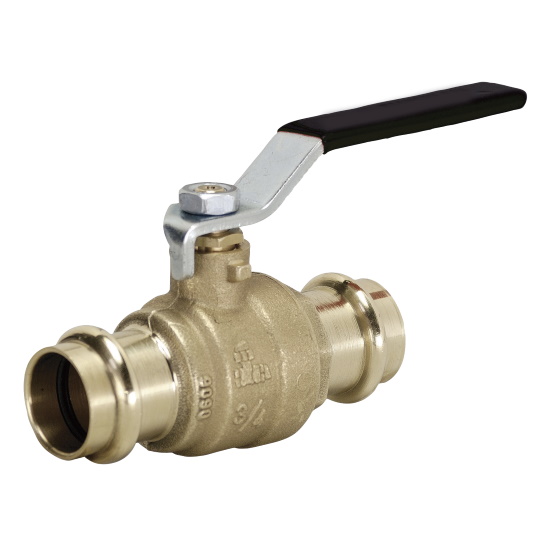

DZR Brass ball valve with press-fit ends "V" profile, iron lever handle
Print datasheet
Items

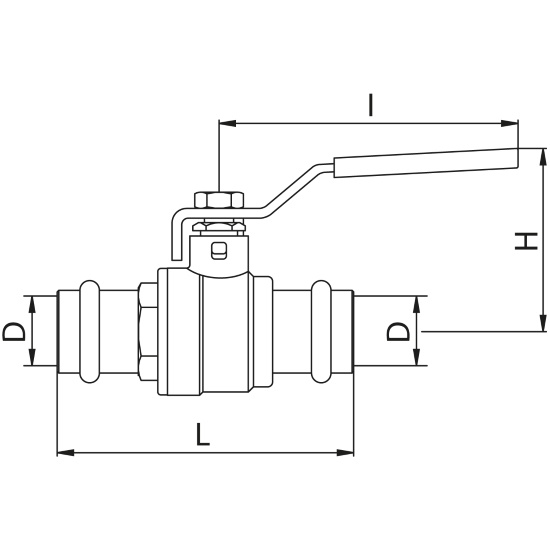

| Code | Size (D) | Smooth | Handle | H | I | L | Pack |
| 537E00030N | D.12 | Iron | 52 | 93 | 78 | 10 | |
| 537E00040N | D.15 | Iron | 52 | 93 | 78 | 10 | |
| 537E00048N | D.18 | Iron | 52 | 93 | 78 | 10 | |
| 537E00050N | D.22 | Iron | 56 | 93 | 92 | 8 | |
| 537E00060N | D.28 | Iron | 67 | 112 | 98 | 5 | |
| 537E00070N | D.35 | Iron | 70 | 112 | 109 | 4 | |
| 537E00080N | D.42 | Iron | 78 | 143 | 132 | 4 | |
| 537E00090N | D.54 | Iron | 86 | 143 | 163 | 2 |
Smooth
- Yellow
- Chrome
- Nickel
- White
Working temperature: 0-110°C
Max working pressure: 25 bar (art. 425BZ -438)
Max working pressure: 16 bar (art. 537E -560E)
Bod y in forged brass
Threads: ISO 228
